RATTMMOTOR CNC Wood Router Machine Kit 3 Axis GRBL Control DIY Mini CNC Engraver Carving Milling Machine+Offline Controller+775 Spindle Motor ER11 for Cutting Acrylic PVC PCB Plastic Wood

RATTMMOTOR CNC Wood Router Machine Kit 3 Axis GRBL Control DIY Mini CNC Engraver Carving Milling Machine+Offline Controller+775 Spindle Motor ER11 for Cutting Acrylic PVC PCB Plastic Wood

Low stock: 2 left

B08JYWH4K5

color_name
$116.80
$116.80
Sale Sold out
Shipping calculated at checkout.

Product description

mini cnc

How to use Offline Controller

  • Main Page

1) Ctrl: Machine Control; 2) File: Use the Gcode file; 3) Press [Y+] [Y-] to select; 4) Press[Ok] to Enter.

  • Control Page

1) X± Y± Z±: Moving Axis; 2) OK/Spindle: Spindle ON/OFF; 3)Exit/Step: Change Step/Exit ( long press )

  • File Page

1) Press [Y+] [Y-] to select file; 2) Press [Ok] to Enter; 3)Press [Ok] to begin if you are ready; 4) Note: Long press [Exit] to stop machining

  • How to increase/decrease the spindle power:

After pressing the spindle button, press and hold the OK button and the Z+/Z- button simultaneously to increase/decrease the speed.

sainsmart genmitsu 3018-pro

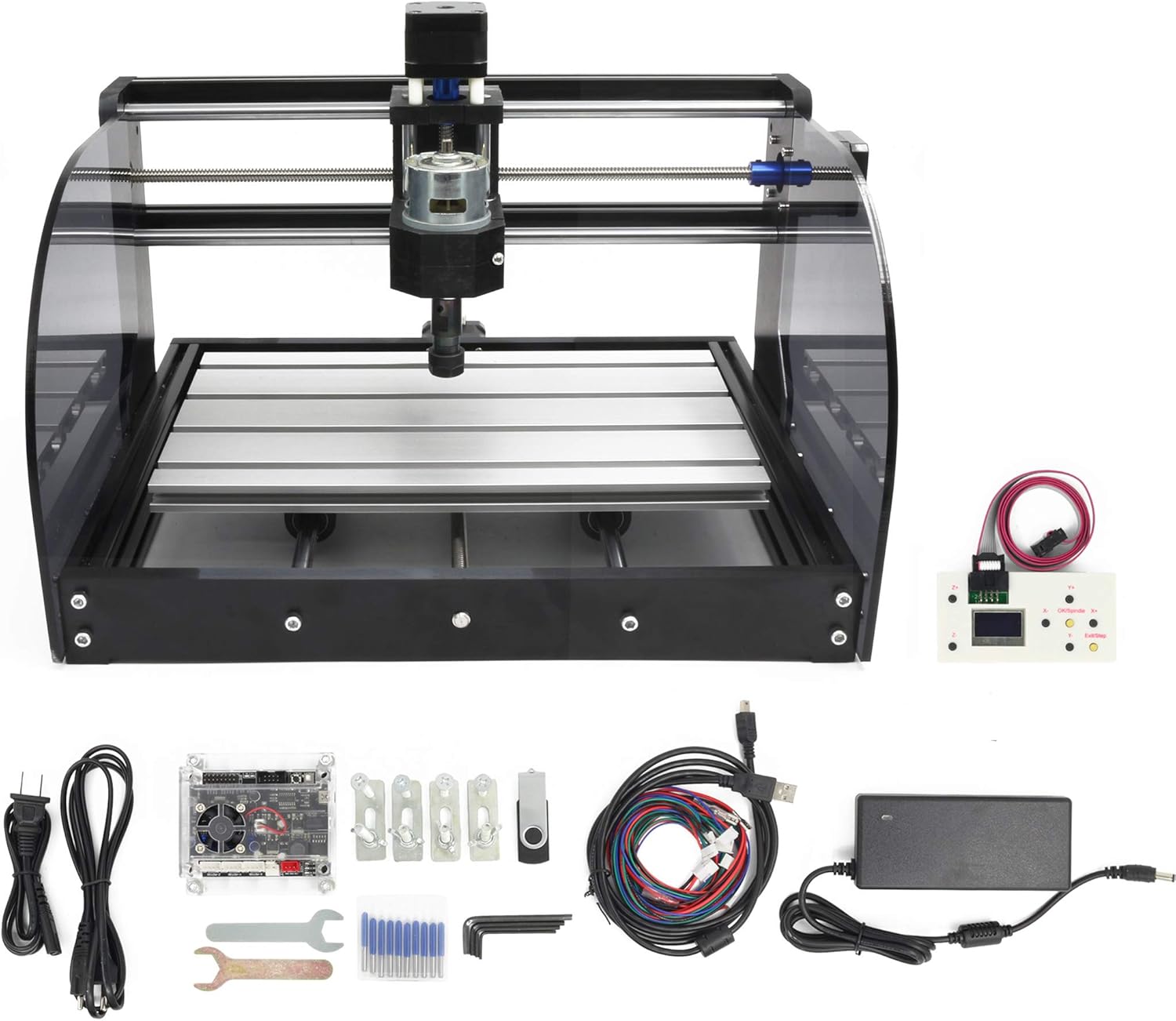

What's in the package

  • 1 x DIY MINI CNC Router Machine Kit
  • 1 x Power Supply
  • 10 x Tip 0.1 mm, 20° 3.175 mm Drill Bits
  • 4 x Plate Clamps
  • 1 x English Manual
  • 1 x 4GB USB Flash Drive
  • 1 set Allen Wrench
  • 1 x CNC Offline Controller
  • 1 x 14pcs ER11 Collets

3018 mini cnc router

About machine installation:

  • Although this mini engraving machine is shipped in bulk, it is simple and easy to install. The package is equipped with an English installation and operation manual. In addition, we also have an assembly video, so users do not have to worry about not installing the machine.
  • It should be noted that this is only a mini machine suitable for novices or DIY enthusiasts, and cannot be compared with professional industrial machines.

cnc router

Parameters:

  • Work area: 300x180x45 mm ((11.8 x 7.1 x 1.8”)
  • Frame: 420x350x270mm (16.53x13.78x10.63”)
  • Material: PA6 Nylon + Aluminum profile
  • Power supply : 24V 5.6A power adapter (input voltage 110-240V)
  • 775 Spindle motor: 12-24VDC 10000RPM
  • Collet: ER11 3.175mm (Can be equipped with 0-7mm)
  • Step motor: Nema17 stepper motor 1.3A, 0.25N.m
  • Processing accuracy: About 0.2mm

cnc wood router

775 SPINDLE MOTOR

  • Power: 100W
  • Speed: 10000RPM
  • Collet: ER11
  • large torque, low friction and stable operation.
  • Double ball bearings have low noise.

3018 cnc

Supported Engraving Materials:

  • Wood, plastic, acrylic, pvc, pcb, carbon fiber, density board, plastic phone cases, rubber stamps, copper , aluminum and other soft materials.
  • It should be noted that materials such as jewelry, jade, stainless steel, stone, ceramics and other similar materials are not supported.

cnc router engraver machine

GRBL Software

First install Win7/ win10 under the support system, the re-install or exit the anti-viru soft ware and re-install.

cnc machine

With 10pcs 3.175mm Drill bits

  • Tool holder diameter: 3.175mm/0.125in
  • Material: Tungsten steel
  • Blade length: 15mm/0.59in
  • Total length: 38mm/1.5in
  • Tip: 0.1mm/0.004inm
  • Angle: 20°

cnc router machine

New Fuction

Add the X/Y/Z axis limit switch function, which means that the machine can automatically stop moving when the X/Y/Z axis moves beyond the machine stroke.

Add the emergency stop button function. When the engraving machine is working unusually, you can press this button to stop working immediately.

cnc machine

Advantages:

  1. Add energency stop button interface.
  2. Increase optocoupler isolation: this spindle drive increase the optocoupler isolation, which makes the controler generate less heat and the spindle speed adjustment is more safer.
  3. Optimized the Z/Y/Z limit port, making wiring and operation easier.
  4. Improved USB interface: The original USB interface is patch soldering, transport collision and improper use, easy to drop, now changed to plug-in, very strong.
  5. Add the power switch button, more safety in the process of using the machine.

cnc controller board

More Fuctions

  • Support : Supprt emergency stop, X/Y/X axis limit switch, offline controller, probe,ect.
  • Enhanced spindle drive, can support up to 20,000 rpm spindle motor.
  • Add the outer casing, not only protectt control board in transit, to avoid short circuit problem during use.
  • Cancel the drive modulle,use integrated imported stepper motor drive,with short circuit protection,and integrated heat dissipation aluminum alloy.
  • Add the low noise fan port to force heat dissipation.
  • Add offline recognition,can insert offline modules and computers at the same time. Offline will automatically identify if there is computer control.

cnc controller board

Support Format flies

  • Format flies that support 3-Axis engraving: Support G-code files of nc, ncc, tap, txt;
  • Format flies that support 2-Axis engraving: Support nc, ncc, tap, G-code, ngc, png, jpg, gif, svg

cnc router machine
