About this item

• Accurate 1 m Drop Range—0~39.4 inch height with clear scale; stop-collar enables fast, repeatable settings for QC.
• Smooth, Vertical Guidance—Rigid guide column and low-friction sleeve keep the drop weight aligned for consistent impact energy.
• Built for Coating Tests—Ideal for (Gardner/ASTM D2794-style) evaluation of paint & film resistance to deformation and cracking in labs or production lines.
• Stable Specimen Support—The heavy base keeps the bench stable and vibration-free during operation.
• Repeatable Settings — Lockable stop collar enables consistent energy across multiple hits.

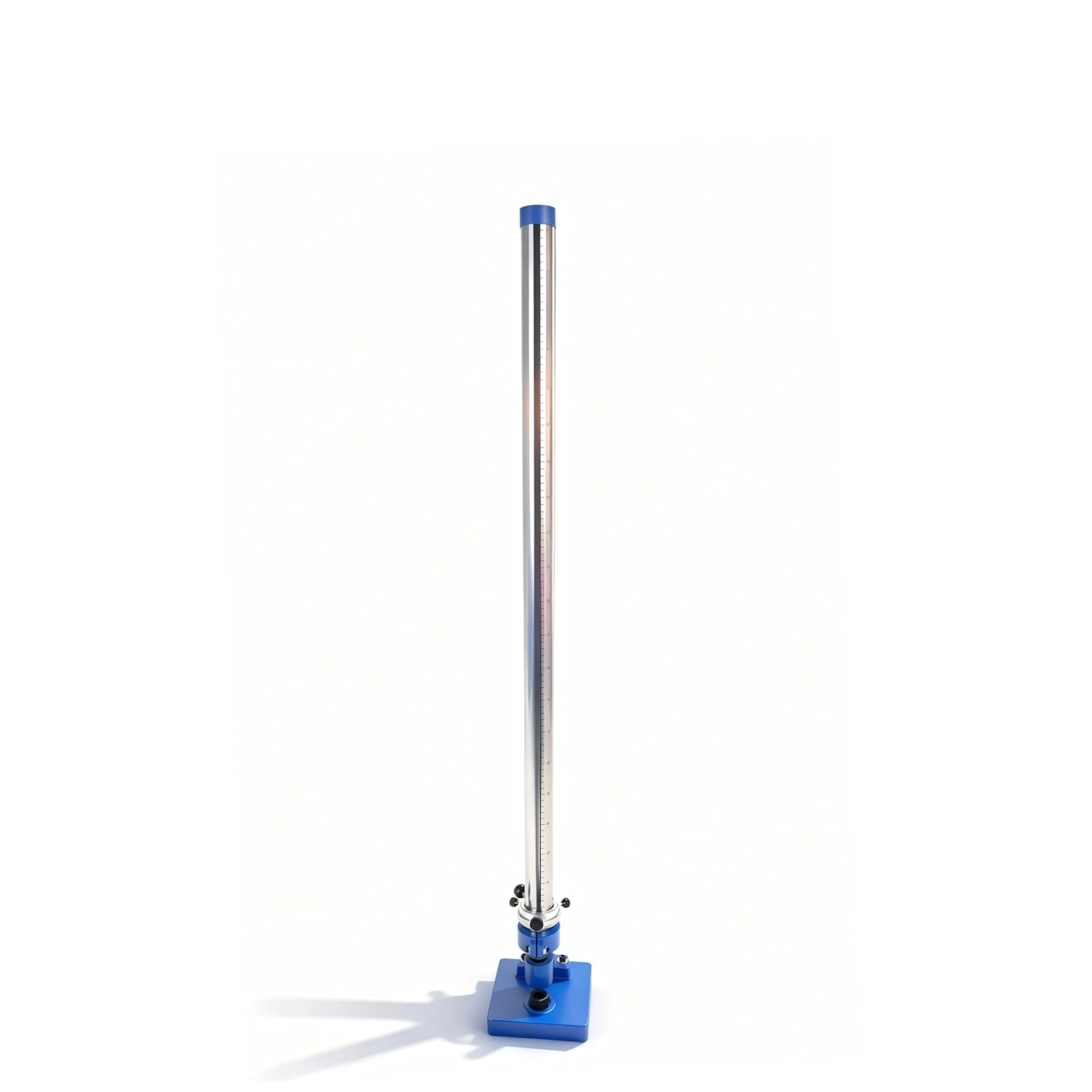

This bench-top drop-weight impact tester provides a simple, repeatable way to evaluate a coating or substrate’s resistance to sudden impact. The guide column features a clear height scale from 0 to 1 meter (39.4 inch). Set your target height, lock the stop collar to repeat the setting, and use the release mechanism to drop the weight vertically onto the striker.

The rugged base/anvil keeps panels flat while clamping screws hold the specimen and center the impact point. A quick-lock striker holder accepts common interchangeable impact noses (flat, hemispherical, conical) used in Gardner/ASTM D2794-style methods, allowing you to match tip geometry to your standard or application.

Designed for daily QC and R&D, the tester delivers consistent, easy-to-interpret results—visible dents, cracks, or coating failures—across metal panels, plastics, and other rigid substrates. Overall height is 39.4 inches (1 m) for convenient inch/metric workflows. Ideal for paint shops, coil-coating lines, OEM finishing, and lab classrooms.

Parameter:
Product Name: Paint Film Impact Tester
Weight:12kg
Drop Height Scale Length (option): 50 cm ±0.2 cm / 100 cm ±0.2 cm
Scale Division: 1 cm
Drop Mass (Hammer): 1000 g ±1 g
Striker (Indenter) Diameter: Ø8 mm
Receiving Die (Anvil) Diameter: Ø15 mm
Receiving Die Radius (Fillet Radius): R2.5–3.0 mm
Nominal Indentation Depth (Setpoint): 2.0 mm ±0.1 mm
Overall Dimensions (L×W×H): 200 × 200× 1250 mm
Application: Determination of impact resistance of organic coatings/paint films on coated substrates (Gardner/ASTM D2794-style method).

advantage:
-Heavy base & rigid anvil for stable, low-vibration impacts
-1 kg drop mass with 1 cm scale for quick, repeatable setup
-Optional 50/100 cm range; Ø8 mm striker with Ø15 mm die (R2.5–3) for versatile coating tests

Packing List:1xPaint Film Impact Tester
