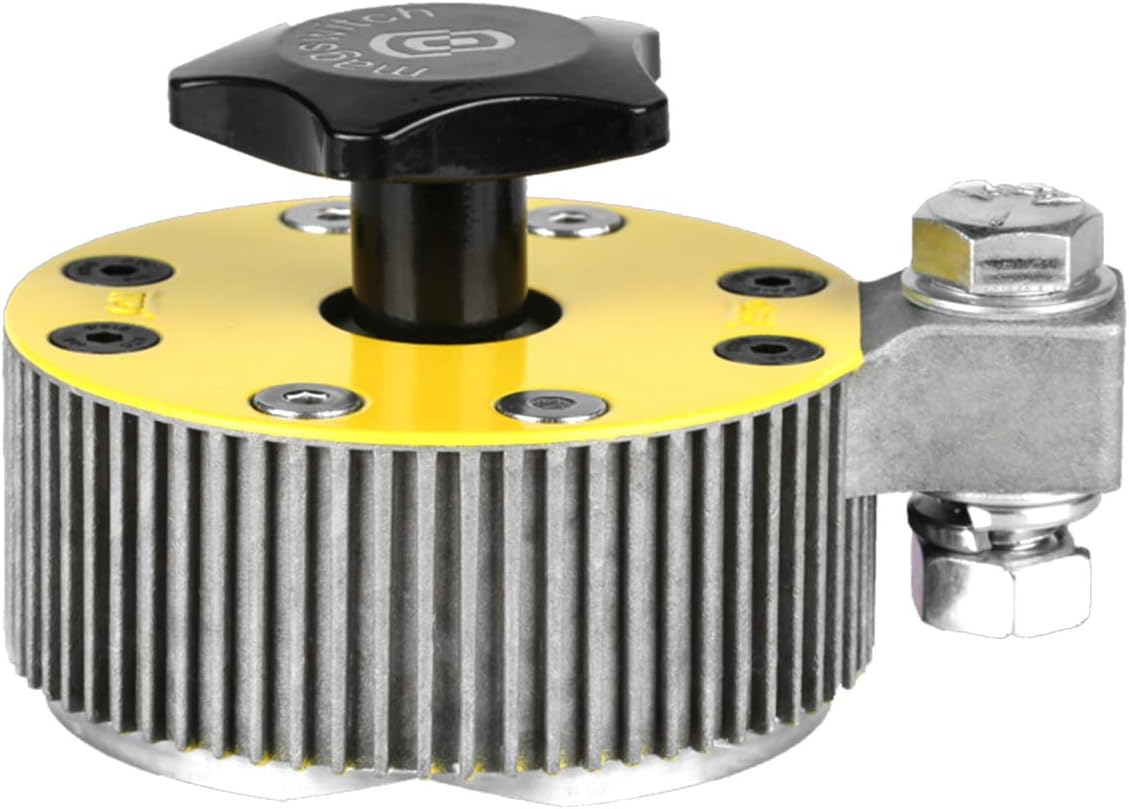

Magswitch 800 Amp Ground Clamp
Magswitch 800 Amp Ground Clamp
Low stock: 2 left
SKU:B00VV016YM
Couldn't load pickup availability
Product description
 800 Amp Ground Clamp |  600 Amp Ground Clamp 600 Amp Ground Clamp |  300 Amp Ground Clamp | |
|---|---|---|---|
| Customer Reviews | 845 | 845 | 845 |
| Price | $296.99 | $166.99 | $71.99 |
| Part Number | 8100552 | 8100747 | 8100746 |
| Max Breakaway | 300 lbs (136 kg) | 200 lbs (89 kg) | 90 lbs (41 kg) |
| Height | 2.9 in (73.9 mm) | 2.6 in (65.5 mm) | 2.3 in (57.3 mm) |
| Width | 3.9 in (98.6 mm) | 3.1 in (78.5 mm) | 1.9 in (49 mm) |
| Length | 4.9 in (125.6 mm) | 4.2 in (105.6 mm | 2.9 in (73.1 mm) |
| Weight | 3.5 lbs (1.6 kg | 1.8 lbs (0.8 kg) | 0.9 lbs (0.4 kg) |
Applications: Grounding, Welding
- All new fin design lowers temperature by almost 27-percent
- Stronger hold in shear (vertical) position allows for use with heavy gauge ground cable
- No more tacking on tabs and searching for ground location
- Fast Setup, grounds instantly
- Higher amperage available with new 800 model
MAGSWITCH 800 AMP GROUND CLAMP – 8100552
SPECIFICATIONS
- Max Breakaway: 300 lbs/136 kg
- Product Weight: 3.8 lbs/1.6 kg
- Overall Height: 74mm
- Magnetic Pole Footprint: 89mm diameter
The Magswitch 800 Amp Ground Clamp lets welders quickly set up, weld, and move on to the next job. Simply place it on a clean work surface, turn on the magnet, and start welding. Our revolutionary fin design sheds heat more efficiently than traditional magnetic ground clamps.
Features
- All new fin design lowers temperature by almost 27%.
- No more searching for or creating a ground location.
- Grounds instantly.
- Turn on Magswitch and start welding.
- Stays clean.
- Turn off Magswitch and wipe away debris.
- Reusable – saves welders time and money.
- Quick and easy connect and disconnect.
- Easily attaches to flat or round surfaces.
- No more tacking on tabs in large sheet-weld or pipe jobs.
Simply place our magnetic ground clamp on a clean work surface, turn on and start welding!
Fast setup as it instantly grounds to flat and round surfaces of steel
No more tacking on tabs and searching for ground location
