About this item

• Makes instant measurements or long triggering sessions a breeze. Better than a soldering station helping hand.
• The probes are steady but yet flexible made for instant measurements or total hands-free operations together with your multimeter, logic analyzer, host adapter, debugger/programmer, or oscilloscope.
• Saves time and frustration during development, verification and repairs. No fooling around with a third hand soldering tool.
• The circuit board holders can be easily repositioned to handle circuit boards of varying shape and sizes.
• The dual pin header connector fits directly on a 2.54mm (0.100”) connector.
• Sensepeek no.: 4003

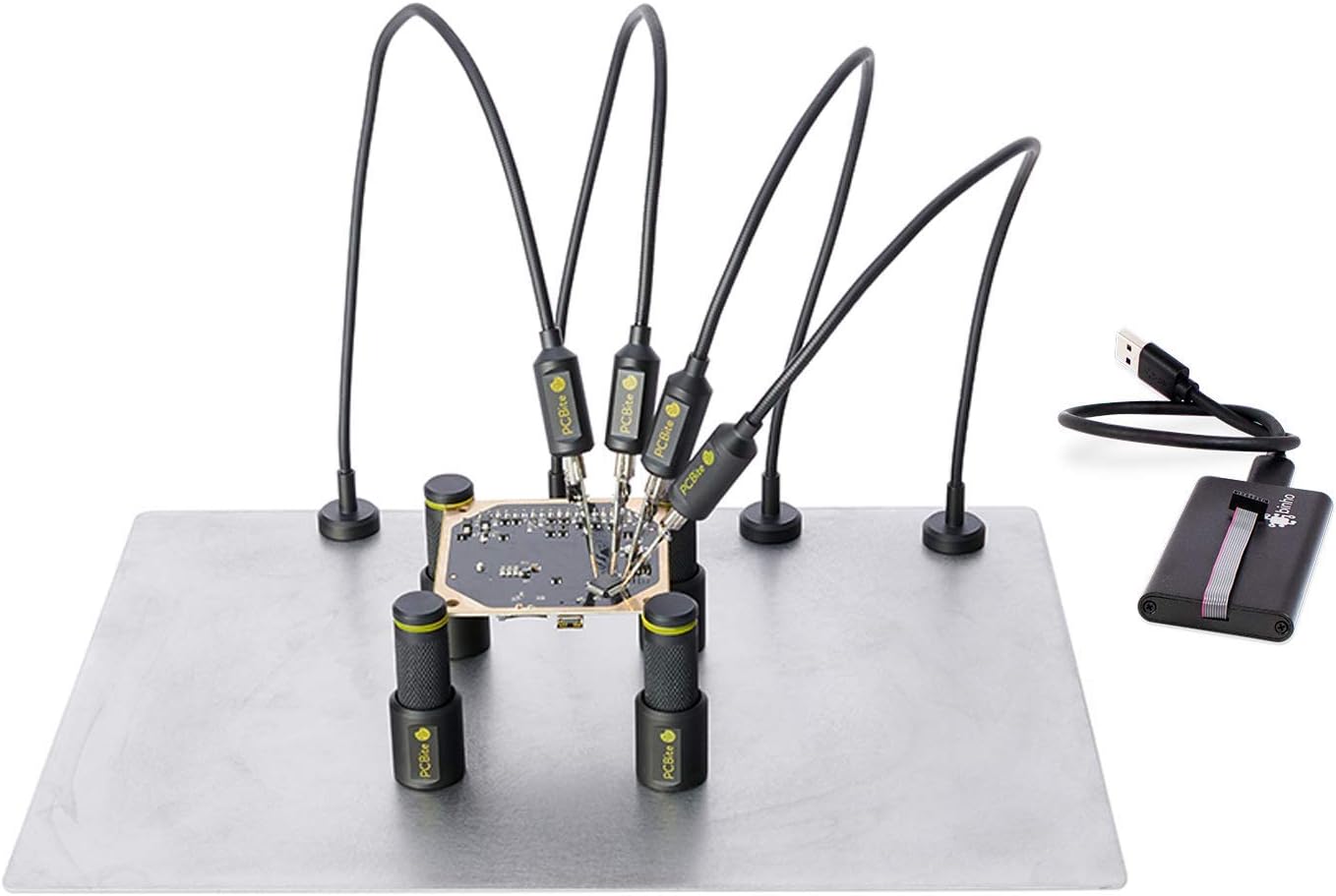

The PCBite Kit is the complete solution for soldering, inspection and handsfree measurements.
The perfect upgrade for your workbench for electronics! The circuit board holder is perfect for soldering electronics, especially under a microscope. Say goodbye to your old circuit board repair kit / soldering helping hand - this is the last PCB holder you'll ever purchase for your soldering stand.
This kit includes the following items:

• 4x PCBite holders
• 1x Large Base plate
• 4x SP10 probes with pin tipped test needles
• 4x Extra test needles
• 1x Set of insulation washers
• 5x Dupont to dupont test wires
• 2x Banana to dupont test wires
• 1x Microfiber cloth

This kit makes it a breeze to instrument your test circuit. No more soldering wires to connect your probe, just position the probe needle on any test point or component in the signal path and release. The minimalist design and the spring loaded test needle makes it possible to simultaneously probe directly on fine pitch components and SMT test points.
PCB Holders
The holder can easily be repositioned to handle circuit boards of varying shape and sizes. The holders are machined from 6061 aluminum, sandblasted and anodized black matte to get that perfect look and feel. At the bottom of each holder is a magnet perfectly balanced in strength. The “jaw” can open wide and a stainless spring ensures a strong locking force.
Probes
The probe has a flexible metal arm and a powerful magnet in the base. The unique "lift and drop" function takes away the need for annoying and complicated set screws. The weight of the head makes the compressible needle maintain constant pressure at the probing point so even if the board is bumped, the probe tip will stay in position.
Base Plate
The base plate is made of stainless steel. One side of the plate is matte and the other mirror polished.
